PT14 · Grippers & Pads
Gripper Nut (Flat End)
Threaded gripper nut with a flat contact face for supporting finished surfaces.
- 2 part numbers with full dimensions
- Material: S45C (JIS)
- Surface finish: black oxide
Gripper Nut (Flat End) part numbers & dimensions
2 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

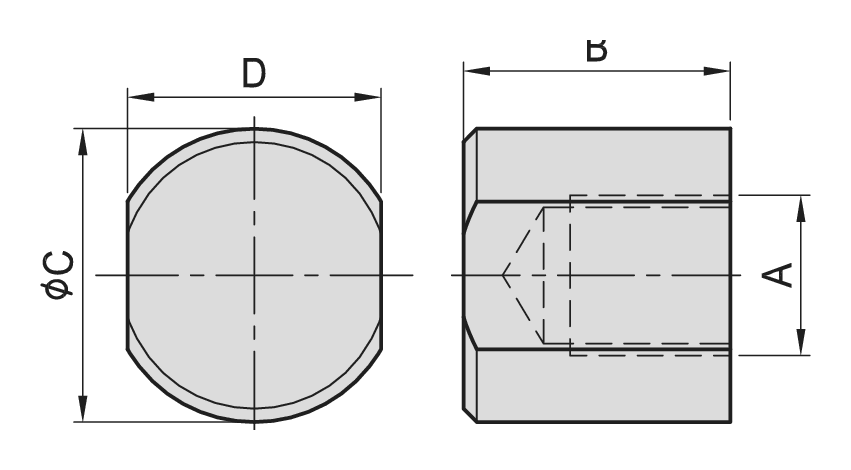

Dimension drawing
Material & specifications
- Material: S45C (JIS)
- Surface finish: black oxide
- Application: use for supporting workpiece
Ordering the Gripper Nut (Flat End)
Send us the PT14 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
