PT22 · Washers & Spacers

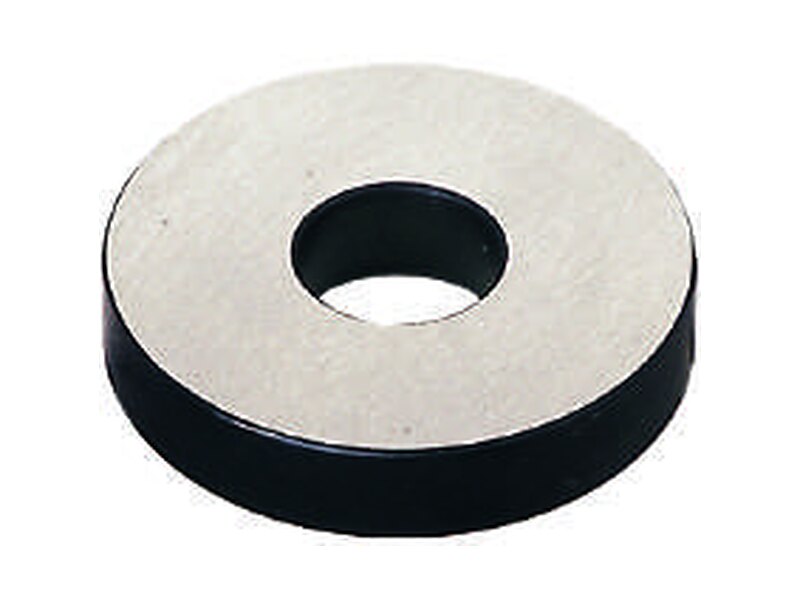

Spacer
Ground, hardened spacer for raising or extending jig components to a precise height.
- 8 part numbers with full dimensions
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 40°
Spacer part numbers & dimensions
8 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

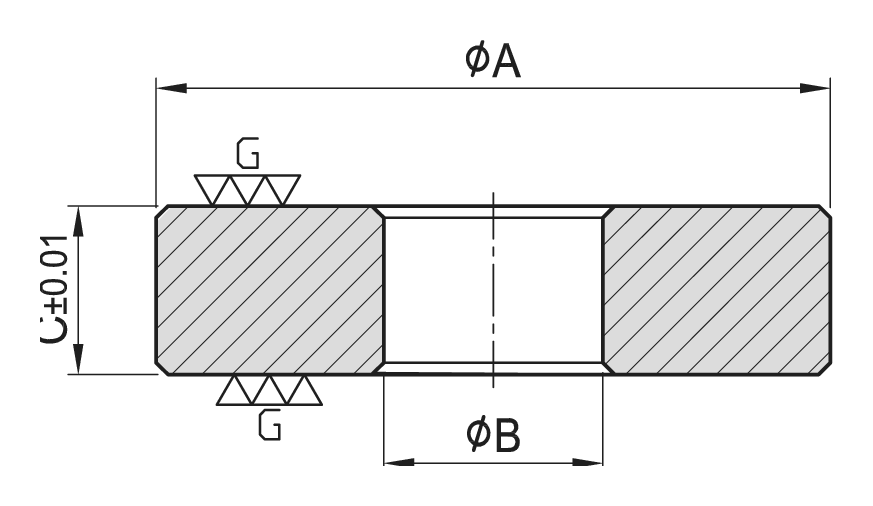

Dimension drawing
| Model No. | ØA | ØB | C | kg | Quote |
|---|---|---|---|---|---|
| PT22-1303 | 40 | 13 | 3 | 0.030 | Quote |
| PT22-1305 | 40 | 13 | 5 | 0.045 | Quote |
| PT22-1310 | 40 | 13 | 10 | 0.100 | Quote |
| PT22-1330 | 40 | 13 | 30 | 0.300 | Quote |
| PT22-1703 | 50 | 17 | 3 | 0.035 | Quote |
| PT22-1705 | 50 | 17 | 5 | 0.070 | Quote |
| PT22-1710 | 50 | 17 | 10 | 0.350 | Quote |
| PT22-1730 | 50 | 17 | 30 | 0.950 | Quote |
Material & specifications
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 40°
- Application: use with jig components for increasing height or extending length
- Thickness C held to ±0.01 mm, both faces ground
Ordering the Spacer
Send us the PT22 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
