PT24 · Washers & Spacers
Swing "C" Washer
Pivoting C washer held captive by its own screw so it swings clear for loading.
- 3 part numbers with full dimensions
- Material: 4140 (JIS) / CK45 (DIN)
- Heat treated: HRC 40°
Swing "C" Washer part numbers & dimensions
3 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

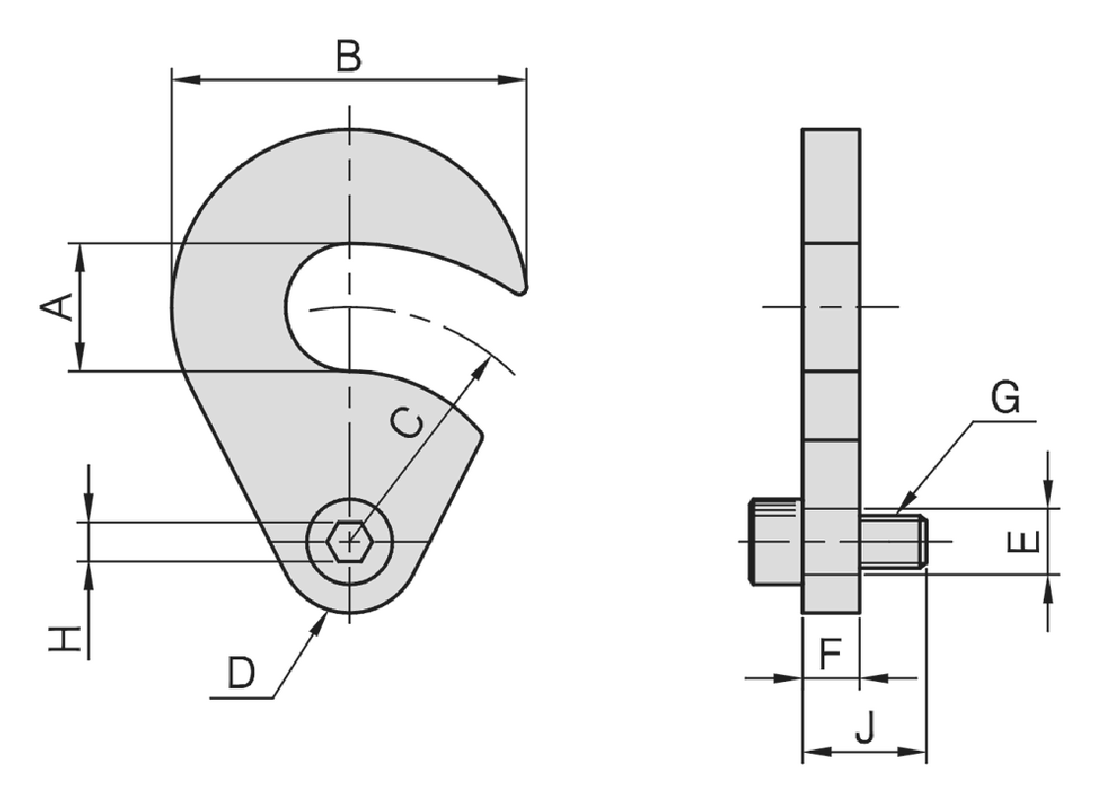

Dimension drawing
| Model No. | A | B | C | D | E | F | G | H | J | kg | Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PT24-0632 | 11.0 | 32 | 24 | 16 | 8 | 6 | M6 | 8 | 15 | 0.050 | Quote |
| PT24-0840 | 13.5 | 40 | 27 | 20 | 10 | 8 | M8 | 10 | 20 | 0.090 | Quote |
| PT24-0850 | 18.0 | 50 | 33 | 20 | 10 | 8 | M8 | 10 | 20 | 0.130 | Quote |
Material & specifications
- Material: 4140 (JIS) / CK45 (DIN)
- Heat treated: HRC 40°
- Surface finish: black oxide
- Application: C washer that swings out of the way for clean loading; can be reversed to swing into position either clockwise or counter-clockwise
Ordering the Swing "C" Washer
Send us the PT24 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
