PT07 · Studs & Eyebolts

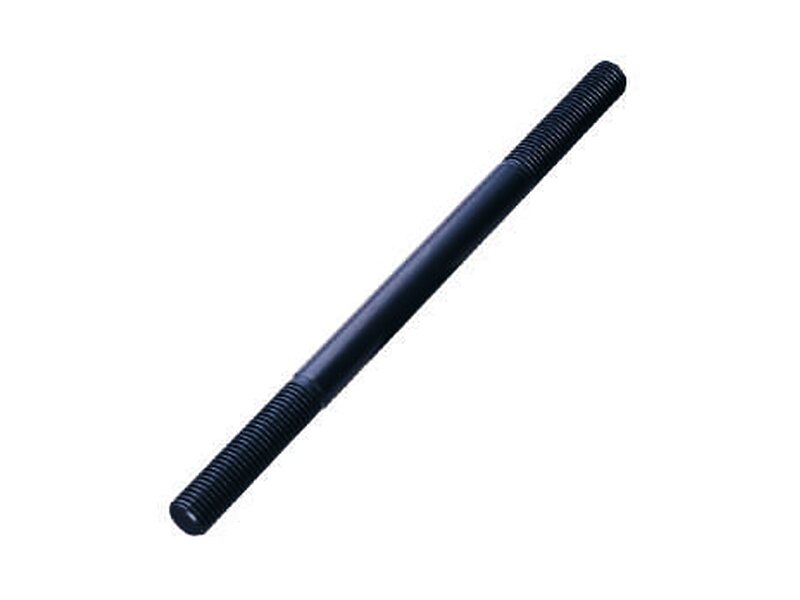

Clamping Stud
Double-end threaded clamping studs from M8 to M24 in lengths from 50 to 500 mm.
- 83 part numbers with full dimensions
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 22°–28°
Clamping Stud part numbers & dimensions
83 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

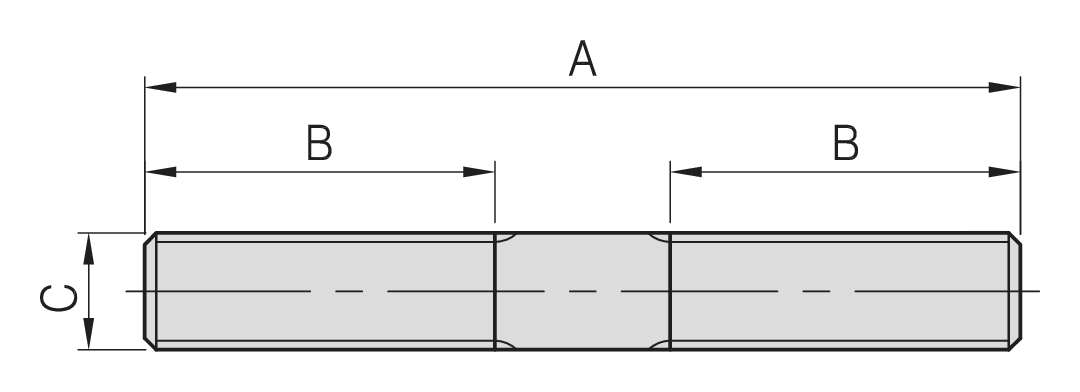

Dimension drawing
| Model No. | A | B | C (thread) | kg | Quote |
|---|---|---|---|---|---|
| PT07-08050 | 50 | 22 | M8 P=1.25 | 0.020 | Quote |
| PT07-08075 | 75 | 22 | M8 P=1.25 | 0.030 | Quote |
| PT07-08100 | 100 | 38 | M8 P=1.25 | 0.040 | Quote |
| PT07-08125 | 125 | 38 | M8 P=1.25 | 0.050 | Quote |
| PT07-08150 | 150 | 50 | M8 P=1.25 | 0.060 | Quote |
| PT07-08175 | 175 | 50 | M8 P=1.25 | 0.070 | Quote |
| PT07-08200 | 200 | 50 | M8 P=1.25 | 0.080 | Quote |
| PT07-08250 | 250 | 50 | M8 P=1.25 | 0.098 | Quote |
| PT07-10050 | 50 | 22 | M10 P=1.5 | 0.030 | Quote |
| PT07-10075 | 75 | 30 | M10 P=1.5 | 0.042 | Quote |
| PT07-10100 | 100 | 38 | M10 P=1.5 | 0.055 | Quote |
| PT07-10125 | 125 | 38 | M10 P=1.5 | 0.070 | Quote |
| PT07-10150 | 150 | 50 | M10 P=1.5 | 0.090 | Quote |
| PT07-10175 | 175 | 50 | M10 P=1.5 | 0.108 | Quote |
| PT07-10200 | 200 | 65 | M10 P=1.5 | 0.123 | Quote |
| PT07-10250 | 250 | 65 | M10 P=1.5 | 0.154 | Quote |
| PT07-12050 | 50 | 22 | M12 P=1.75 | 0.040 | Quote |
| PT07-12075 | 75 | 30 | M12 P=1.75 | 0.060 | Quote |
| PT07-12100 | 100 | 38 | M12 P=1.75 | 0.080 | Quote |
| PT07-12125 | 125 | 38 | M12 P=1.75 | 0.100 | Quote |
| PT07-12150 | 150 | 50 | M12 P=1.75 | 0.125 | Quote |
| PT07-12175 | 175 | 50 | M12 P=1.75 | 0.155 | Quote |
| PT07-12200 | 200 | 65 | M12 P=1.75 | 0.160 | Quote |
| PT07-12300 | 300 | 80 | M12 P=1.75 | 0.240 | Quote |
| PT07-14050 | 50 | 22 | M14 P=2.0 | 0.060 | Quote |
| PT07-14075 | 75 | 30 | M14 P=2.0 | 0.090 | Quote |
| PT07-14100 | 100 | 38 | M14 P=2.0 | 0.120 | Quote |
| PT07-14125 | 125 | 38 | M14 P=2.0 | 0.150 | Quote |
| PT07-14150 | 150 | 50 | M14 P=2.0 | 0.180 | Quote |
| PT07-14175 | 175 | 50 | M14 P=2.0 | 0.210 | Quote |
| PT07-14200 | 200 | 65 | M14 P=2.0 | 0.240 | Quote |
| PT07-16050 | 50 | 22 | M16 P=2.0 | 0.078 | Quote |
| PT07-16075 | 75 | 30 | M16 P=2.0 | 0.120 | Quote |
| PT07-16100 | 100 | 38 | M16 P=2.0 | 0.145 | Quote |
| PT07-16125 | 125 | 38 | M16 P=2.0 | 0.180 | Quote |
| PT07-16150 | 150 | 50 | M16 P=2.0 | 0.230 | Quote |
| PT07-16175 | 175 | 50 | M16 P=2.0 | 0.276 | Quote |
| PT07-16200 | 200 | 65 | M16 P=2.0 | 0.290 | Quote |
| PT07-16250 | 250 | 65 | M16 P=2.0 | 0.350 | Quote |
| PT07-16300 | 300 | 80 | M16 P=2.0 | 0.450 | Quote |
| PT07-16400 | 400 | 100 | M16 P=2.0 | 0.580 | Quote |
| PT07-16500 | 500 | 100 | M16 P=2.0 | 0.700 | Quote |
| PT07-18050 | 50 | 22 | M18 P=2.5 | 0.100 | Quote |
| PT07-18075 | 75 | 30 | M18 P=2.5 | 0.150 | Quote |
| PT07-18100 | 100 | 38 | M18 P=2.5 | 0.200 | Quote |
| PT07-18125 | 125 | 38 | M18 P=2.5 | 0.220 | Quote |
| PT07-18150 | 150 | 50 | M18 P=2.5 | 0.300 | Quote |
| PT07-18175 | 175 | 50 | M18 P=2.5 | 0.320 | Quote |
| PT07-18200 | 200 | 65 | M18 P=2.5 | 0.360 | Quote |
| PT07-18300 | 300 | 80 | M18 P=2.5 | 0.600 | Quote |
| PT07-20050 | 50 | 22 | M20 P=2.5 | 0.125 | Quote |
| PT07-20075 | 75 | 30 | M20 P=2.5 | 0.170 | Quote |
| PT07-20100 | 100 | 38 | M20 P=2.5 | 0.230 | Quote |
| PT07-20125 | 125 | 38 | M20 P=2.5 | 0.275 | Quote |
| PT07-20150 | 150 | 50 | M20 P=2.5 | 0.360 | Quote |
| PT07-20175 | 175 | 50 | M20 P=2.5 | 0.437 | Quote |
| PT07-20200 | 200 | 65 | M20 P=2.5 | 0.450 | Quote |
| PT07-20250 | 250 | 65 | M20 P=2.5 | 0.550 | Quote |
| PT07-20300 | 300 | 80 | M20 P=2.5 | 0.700 | Quote |
| PT07-20400 | 400 | 100 | M20 P=2.5 | 0.880 | Quote |
| PT07-20500 | 500 | 100 | M20 P=2.5 | 1.100 | Quote |
| PT07-22050 | 50 | 22 | M22 P=2.5 | 0.150 | Quote |
| PT07-22075 | 75 | 30 | M22 P=2.5 | 0.223 | Quote |
| PT07-22100 | 100 | 38 | M22 P=2.5 | 0.300 | Quote |
| PT07-22125 | 125 | 38 | M22 P=2.5 | 0.373 | Quote |
| PT07-22150 | 150 | 50 | M22 P=2.5 | 0.448 | Quote |
| PT07-22175 | 175 | 50 | M22 P=2.5 | 0.522 | Quote |
| PT07-22200 | 200 | 65 | M22 P=2.5 | 0.597 | Quote |
| PT07-22250 | 250 | 65 | M22 P=2.5 | 0.746 | Quote |
| PT07-22300 | 300 | 80 | M22 P=2.5 | 0.895 | Quote |
| PT07-22400 | 400 | 100 | M22 P=2.5 | 1.194 | Quote |
| PT07-22500 | 500 | 100 | M22 P=2.5 | 1.492 | Quote |
| PT07-24050 | 50 | 22 | M24 P=3.0 | 0.177 | Quote |
| PT07-24075 | 75 | 30 | M24 P=3.0 | 0.266 | Quote |
| PT07-24100 | 100 | 38 | M24 P=3.0 | 0.355 | Quote |
| PT07-24125 | 125 | 38 | M24 P=3.0 | 0.443 | Quote |
| PT07-24150 | 150 | 50 | M24 P=3.0 | 0.533 | Quote |
| PT07-24175 | 175 | 50 | M24 P=3.0 | 0.620 | Quote |
| PT07-24200 | 200 | 65 | M24 P=3.0 | 0.710 | Quote |
| PT07-24250 | 250 | 65 | M24 P=3.0 | 0.880 | Quote |
| PT07-24300 | 300 | 80 | M24 P=3.0 | 1.065 | Quote |
| PT07-24400 | 400 | 100 | M24 P=3.0 | 1.420 | Quote |
| PT07-24500 | 500 | 100 | M24 P=3.0 | 1.775 | Quote |
Material & specifications
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 22°–28°
- Surface finish: black oxide
Ordering the Clamping Stud
Send us the PT07 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
