PT09 · Studs & Eyebolts

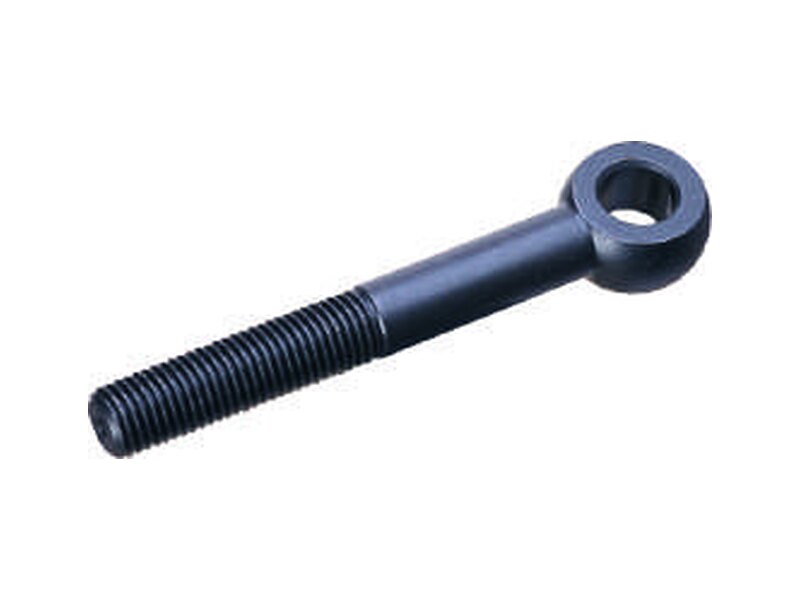

Eyebolt
Swing eyebolt with a reamed eye for smooth swiveling; pairs with the PT28 swivel joint support.
- 8 part numbers with full dimensions
- Material: SCM220 (JIS)
- Heat treated: HRC 30°–35°
Eyebolt part numbers & dimensions
8 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

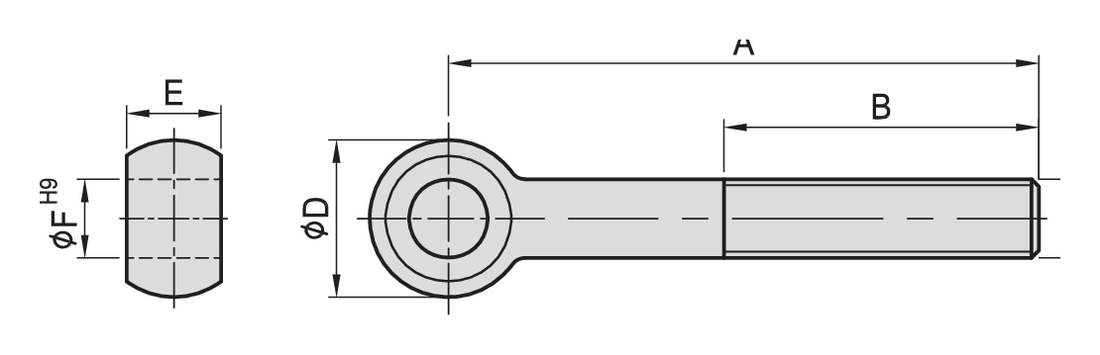

Dimension drawing
| Model No. | A | B | C | D | E | F (H9) | kg | Quote |
|---|---|---|---|---|---|---|---|---|
| PT09-10075 | 75 | 40 | M10 | 20 | 12 | 10 | 0.060 | Quote |
| PT09-10100 | 100 | 40 | M10 | 20 | 12 | 10 | 0.080 | Quote |
| PT09-12075 | 75 | 50 | M12 | 25 | 14 | 12 | 0.095 | Quote |
| PT09-12100 | 100 | 60 | M12 | 25 | 14 | 12 | 0.120 | Quote |
| PT09-16125 | 125 | 60 | M16 | 32 | 17 | 16 | 0.250 | Quote |
| PT09-16150 | 150 | 75 | M16 | 32 | 17 | 16 | 0.300 | Quote |
| PT09-20125 | 125 | 60 | M20 | 40 | 22 | 20 | 0.400 | Quote |
| PT09-20150 | 150 | 75 | M20 | 40 | 22 | 20 | 0.485 | Quote |
Material & specifications
- Material: SCM220 (JIS)
- Heat treated: HRC 30°–35°
- Surface finish: black oxide
- Application: use with PT28 to build custom clamping components
- Features: reamed hole for smooth swiveling
Ordering the Eyebolt
Send us the PT09 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
