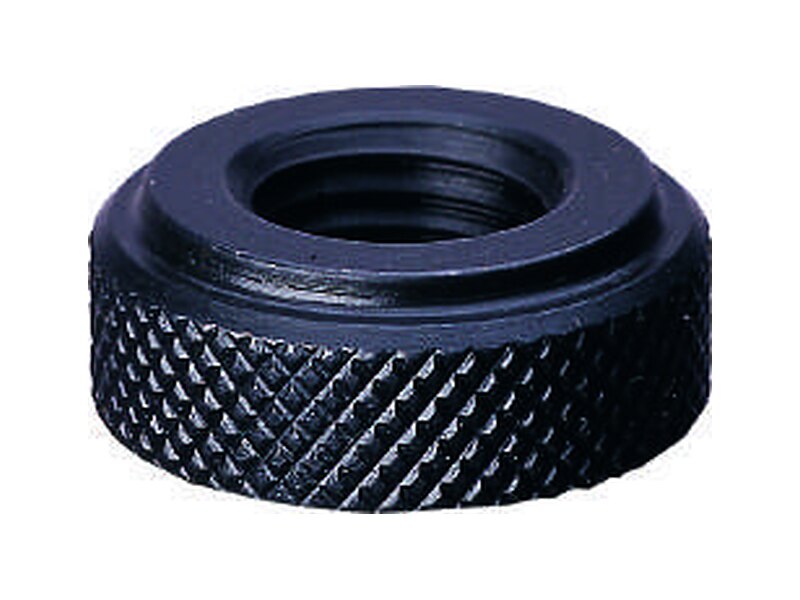

Knurled Nut
Hand-tightened knurled nut for quick, tool-free assembly of fixture components.
- 4 part numbers with full dimensions
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 30°–35°
Knurled Nut part numbers & dimensions
4 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

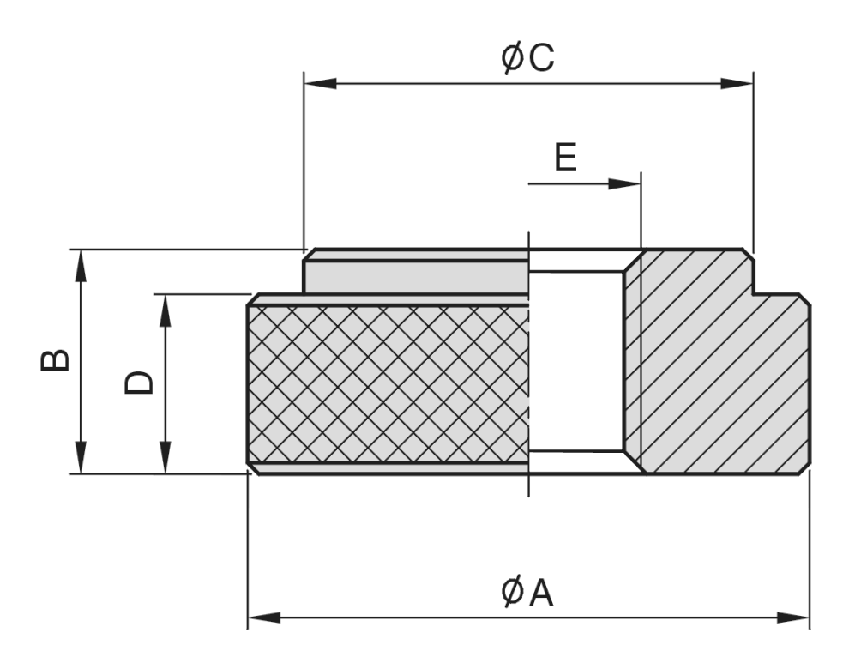

Dimension drawing
| Model No. | A | B | C | D | E | kg | Quote |
|---|---|---|---|---|---|---|---|
| PT03-0820 | 20 | 8 | 16 | 6 | M8 | 0.015 | Quote |
| PT03-1025 | 25 | 10 | 20 | 8 | M10 | 0.030 | Quote |
| PT03-1228 | 28 | 12 | 24 | 10 | M12 | 0.040 | Quote |
| PT03-1630 | 30 | 12 | 25 | 10 | M16 | 0.045 | Quote |
Material & specifications
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 30°–35°
- Surface finish: black oxide
- Application: use where quick hand assembly is needed
Ordering the Knurled Nut
Send us the PT03 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
