PT06 · Nuts & T-Slot Nuts
T-Slot Nut
Heat-treated T-slot nut for anchoring studs and clamps in machine table T-slots, M8 to M24.
- 20 part numbers with full dimensions
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 30°–35°
T-Slot Nut part numbers & dimensions
20 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

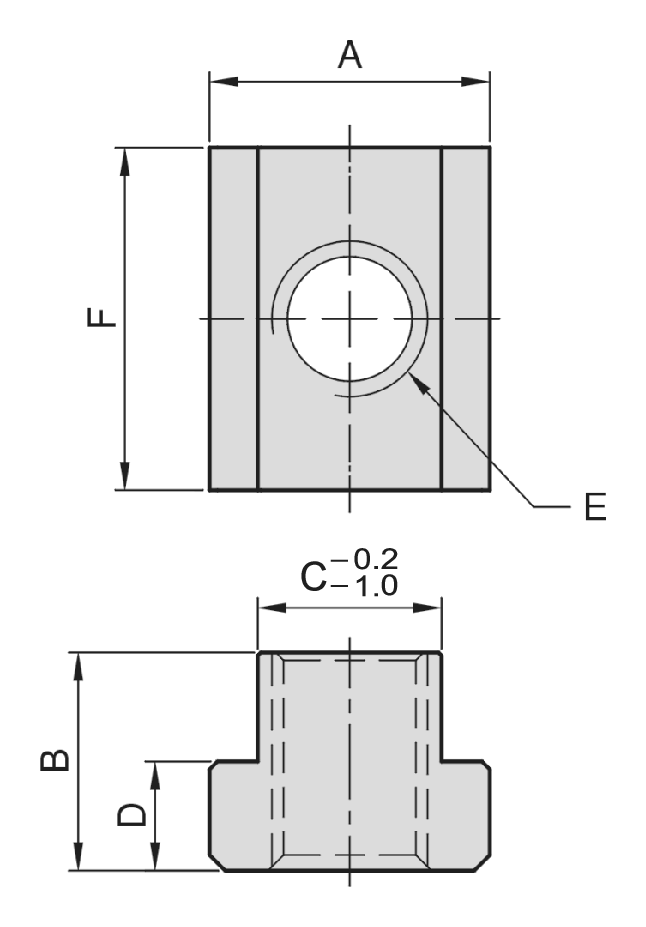

Dimension drawing
| Model No. | A | B | C | D | E | F | kg | Quote |
|---|---|---|---|---|---|---|---|---|
| PT06-1008 | 15.0 | 13.0 | 10 | 6.0 | M8 | 22 | 0.020 | Quote |
| PT06-1210 | 18.0 | 14.0 | 12 | 7.0 | M10 | 22 | 0.022 | Quote |
| PT06-1410 | 22.0 | 16.0 | 14 | 8.0 | M10 | 28 | 0.050 | Quote |
| PT06-1412 | 22.0 | 16.0 | 14 | 8.0 | M12 | 28 | 0.048 | Quote |
| PT06-1612 | 25.0 | 16.0 | 16 | 8.0 | M12 | 28 | 0.060 | Quote |
| PT06-1614 | 25.0 | 16.0 | 16 | 8.0 | M14 | 28 | 0.057 | Quote |
| PT06-1810 | 28.0 | 20.0 | 18 | 10.5 | M10 | 30 | 0.090 | Quote |
| PT06-1812 | 28.0 | 20.0 | 18 | 10.5 | M12 | 30 | 0.090 | Quote |
| PT06-1814 | 28.0 | 20.0 | 18 | 10.5 | M14 | 30 | 0.090 | Quote |
| PT06-1816 | 28.0 | 20.0 | 18 | 10.5 | M16 | 30 | 0.085 | Quote |
| PT06-2016 | 32.0 | 19.0 | 20 | 11.9 | M16 | 30 | 0.098 | Quote |
| PT06-2018 | 32.0 | 25.0 | 20 | 14.0 | M18 | 38 | 0.110 | Quote |
| PT06-2218 | 36.0 | 25.0 | 22 | 14.0 | M18 | 38 | 0.178 | Quote |
| PT06-2220 | 36.0 | 25.0 | 22 | 14.0 | M20 | 38 | 0.190 | Quote |
| PT06-2418 | 38.0 | 25.0 | 24 | 14.0 | M18 | 38 | 0.184 | Quote |
| PT06-2420 | 38.0 | 25.0 | 24 | 14.0 | M20 | 38 | 0.250 | Quote |
| PT06-2620 | 41.3 | 25.0 | 26 | 15.8 | M20 | 44 | 0.250 | Quote |
| PT06-2622 | 41.3 | 25.0 | 26 | 15.8 | M22 | 44 | 0.240 | Quote |
| PT06-2822 | 44.0 | 28.5 | 28 | 17.5 | M22 | 50 | 0.330 | Quote |
| PT06-2824 | 44.0 | 28.5 | 28 | 17.5 | M24 | 50 | 0.312 | Quote |
Material & specifications
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 30°–35°
- Surface finish: black oxide
Ordering the T-Slot Nut
Send us the PT06 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
