PT42 · Nuts & T-Slot Nuts
T-Slot Nut Blank
Undrilled T-slot nut blank, ready to machine for custom threads, dowels or fixture details.
- 10 part numbers with full dimensions
- Material: S45C (JIS)
- Surface finish: black oxide
T-Slot Nut Blank part numbers & dimensions
10 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

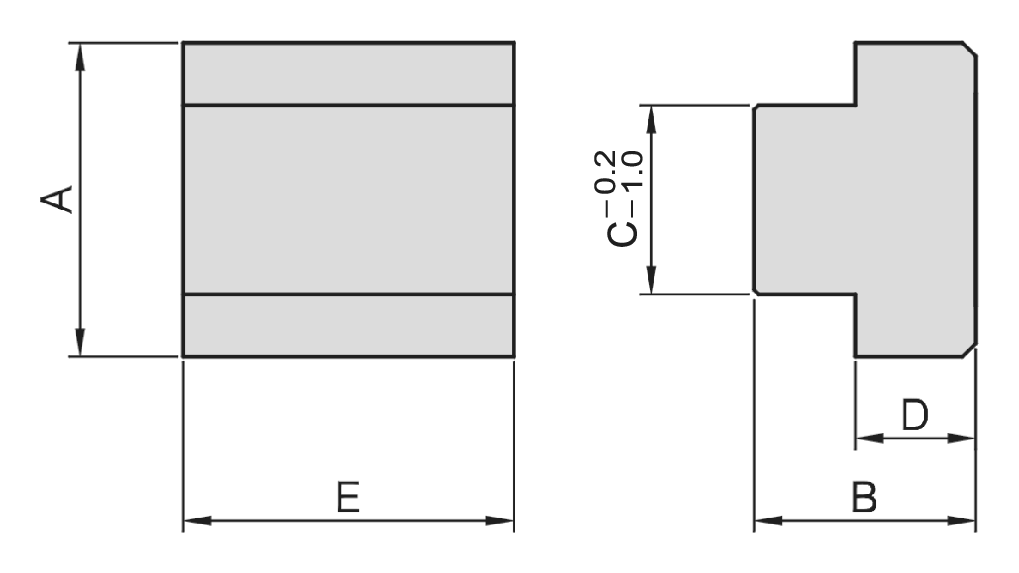

Dimension drawing
| Model No. | A | B | C | D | E | kg | Quote |
|---|---|---|---|---|---|---|---|
| PT42-1022 | 15.8 | 12.7 | 10 | 4.7 | 22 | 0.026 | Quote |
| PT42-1222 | 17.5 | 12.7 | 12 | 5.5 | 22 | 0.032 | Quote |
| PT42-1428 | 22.2 | 15.8 | 14 | 8.7 | 28 | 0.064 | Quote |
| PT42-1628 | 25.4 | 15.8 | 16 | 8.7 | 28 | 0.073 | Quote |
| PT42-1830 | 28.5 | 19.0 | 18 | 11.1 | 30 | 0.112 | Quote |
| PT42-2030 | 31.7 | 19.0 | 20 | 11.9 | 30 | 0.128 | Quote |
| PT42-2238 | 36.0 | 25.0 | 22 | 13.8 | 38 | 0.223 | Quote |
| PT42-2438 | 38.2 | 25.0 | 24 | 14.0 | 38 | 0.239 | Quote |
| PT42-2644 | 41.3 | 25.0 | 26 | 15.8 | 44 | 0.309 | Quote |
| PT42-2850 | 44.0 | 28.5 | 28 | 17.5 | 50 | 0.403 | Quote |
Material & specifications
- Material: S45C (JIS)
- Surface finish: black oxide
- Undrilled blank, machine to suit your own thread or fixture
Ordering the T-Slot Nut Blank
Send us the PT42 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
