PT08 · Nuts & T-Slot Nuts
T-Slot Nut (Ground)
Precision ground T-slot nut for accurate positioning inside the T-slot.
- 2 part numbers with full dimensions
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 30°–35°
T-Slot Nut (Ground) part numbers & dimensions
2 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

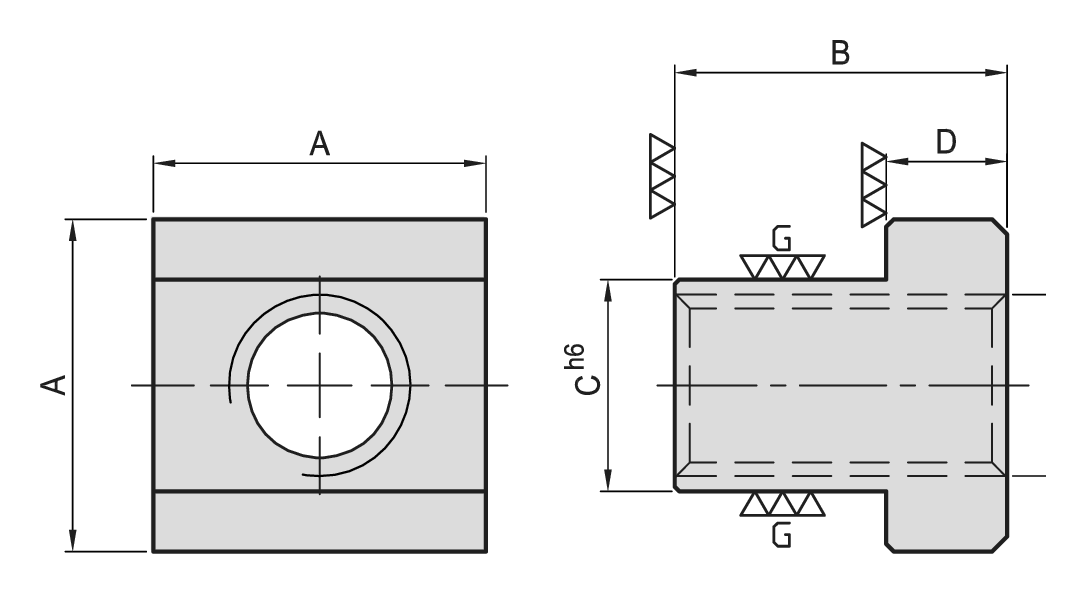

Dimension drawing
| Model No. | A | B | C (h6) | D | E | kg | Quote |
|---|---|---|---|---|---|---|---|
| PT08-1214 | 22 | 22 | 14 | 8 | M12 | 0.045 | Quote |
| PT08-1618 | 28 | 30 | 18 | 10 | M16 | 0.080 | Quote |
Material & specifications
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 30°–35°
- Application: ground surfaces provide accurate positioning inside the T-slot
Ordering the T-Slot Nut (Ground)
Send us the PT08 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
