PT29 · Supports, Rests & Feet
Swivel Pad
Self-aligning swivel foot that threads onto a stud to support uneven surfaces.
- 3 part numbers with full dimensions
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 32°–38°
Swivel Pad part numbers & dimensions
3 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

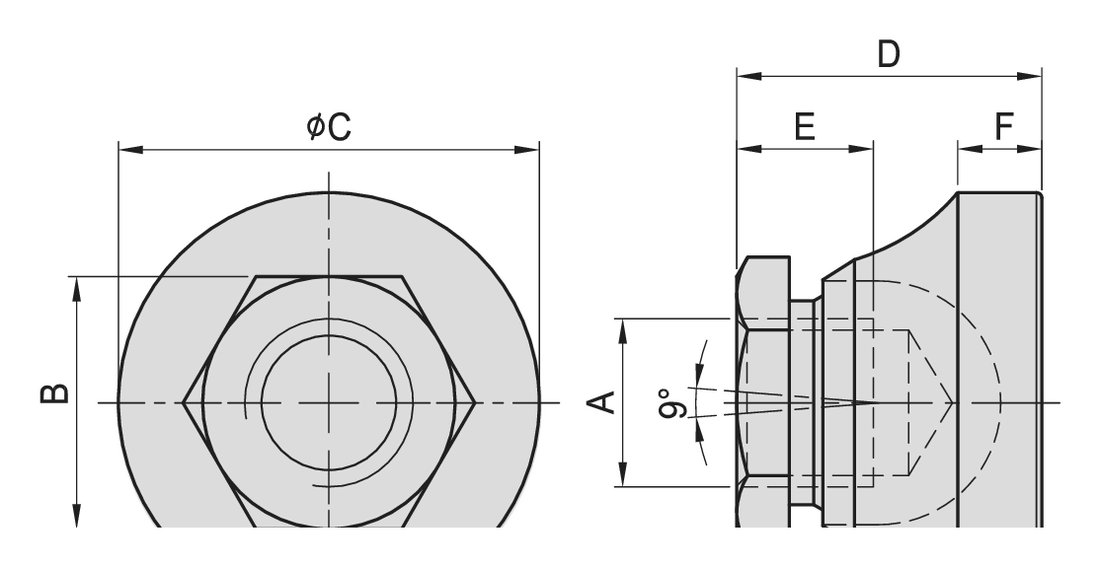

Dimension drawing
| Model No. | A | B | ØC | D | E | F | kg | Quote |
|---|---|---|---|---|---|---|---|---|
| PT29-1219 | M12 | 19 | 35 | 24 | 11 | 7 | 0.080 | Quote |
| PT29-1624 | M16 | 24 | 40 | 29 | 13 | 8 | 0.150 | Quote |
| PT29-2029 | M20 | 29 | 50 | 40 | 18 | 10 | 0.300 | Quote |
Material & specifications
- Material: S45C (JIS) / CK45 (DIN)
- Heat treated: HRC 32°–38°
- Surface finish: black oxide
- Application: use for supporting uneven surfaces (pairs with PT07 clamping stud)
- Swivel angle: 9°
Ordering the Swivel Pad
Send us the PT29 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
