PT35 · Supports, Rests & Feet
Swiveling Jack Screw (Serrated)
Adjustable jack screw with lock nut and serrated swivel head for supporting rough or sloped workpieces.
- 7 part numbers with full dimensions
- Material: body S45C (JIS); ball SUJ2 (JIS)
- Heat treated: body HRC 28°–32°, ball HRC 62°
Swiveling Jack Screw (Serrated) part numbers & dimensions
7 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

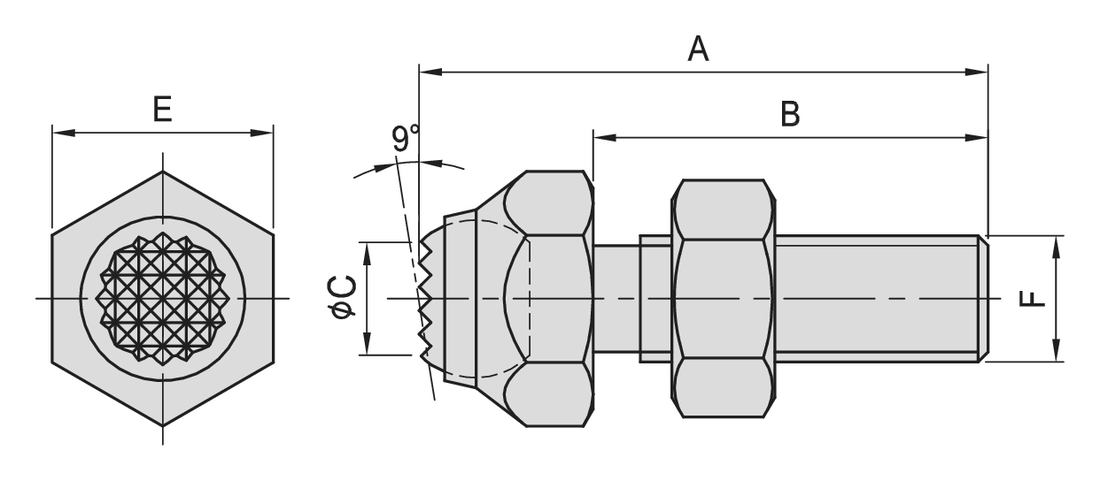

Dimension drawing
| Model No. | A | B | ØC | E | F | kg | Quote |
|---|---|---|---|---|---|---|---|
| PT35-0814 | 36 | 25 | 7 | 14 | M8x1.25 | 0.025 | Quote |
| PT35-1017 | 45 | 30 | 8 | 17 | M10x1.50 | 0.055 | Quote |
| PT35-1217 | 50 | 35 | 10 | 17 | M12x1.75 | 0.055 | Quote |
| PT35-1624 | 60 | 40 | 12 | 24 | M16x2.00 | 0.140 | Quote |
| PT35-2036 | 87 | 60 | 14 | 36 | M20x2.50 | 0.330 | Quote |
| PT35-2436 | 98 | 66 | 18 | 36 | M24x2.00 | 0.660 | Quote |
| PT35-3046 | 110 | 75 | 21 | 46 | M30x2.00 | 1.100 | Quote |
Material & specifications
- Material: body S45C (JIS); ball SUJ2 (JIS)
- Heat treated: body HRC 28°–32°, ball HRC 62°
- Surface finish: black oxide
- Swivel angle: 9°, supplied with lock nut
- Serrated swivel face for rough surfaces
Ordering the Swiveling Jack Screw (Serrated)
Send us the PT35 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
