PT39 · Supports, Rests & Feet
Clamp Rest
Threaded, height-adjustable heel rest with lock nut for strap clamps.
- 3 part numbers with full dimensions
- Material: S45C (JIS)
- Heat treated: HRC 35°
Clamp Rest part numbers & dimensions
3 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

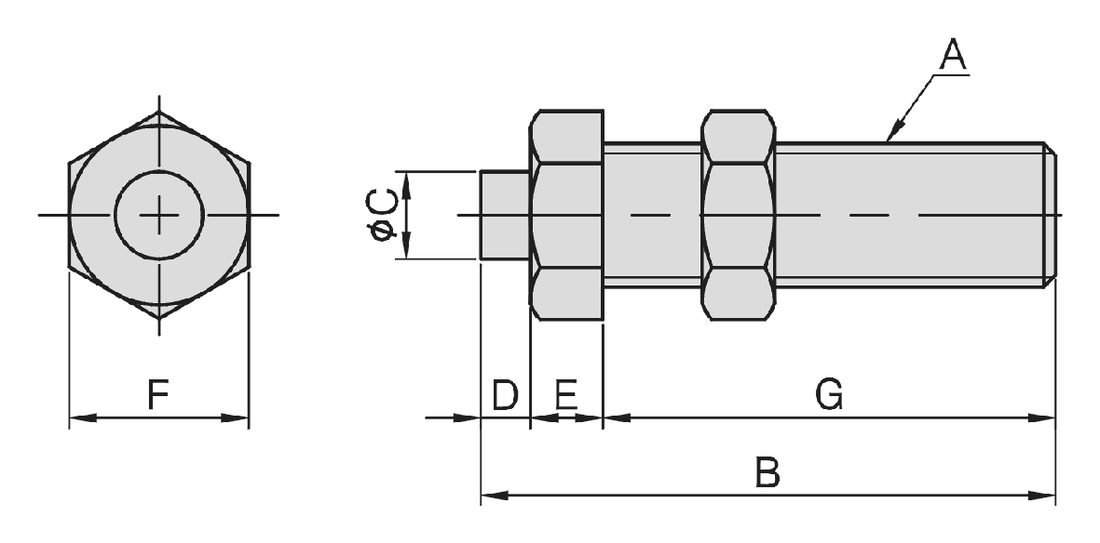

Dimension drawing
| Model No. | A | B | ØC | D | E | F | G | kg | Quote |
|---|---|---|---|---|---|---|---|---|---|
| PT39-1219 | M12 | 75 | 9.5 | 6 | 9 | 19 | 60 | 0.09 | Quote |
| PT39-1624 | M16 | 80 | 11.0 | 7 | 10 | 24 | 63 | 0.17 | Quote |
| PT39-2030 | M20 | 100 | 12.0 | 8 | 12 | 30 | 80 | 0.35 | Quote |
Material & specifications
- Material: S45C (JIS)
- Heat treated: HRC 35°
- Surface finish: black oxide
- Height-adjustable rest for strap clamps (e.g. CP07)
Ordering the Clamp Rest
Send us the PT39 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
