PT43 · Ball Rollers & Accessories
Threaded Insert
Hardened threaded insert that adds a wear-resistant thread to fixture plates and soft materials.
- 8 part numbers with full dimensions
- Material: S45C (JIS)
- Heat treated: HRC 32°–35°
Threaded Insert part numbers & dimensions
8 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

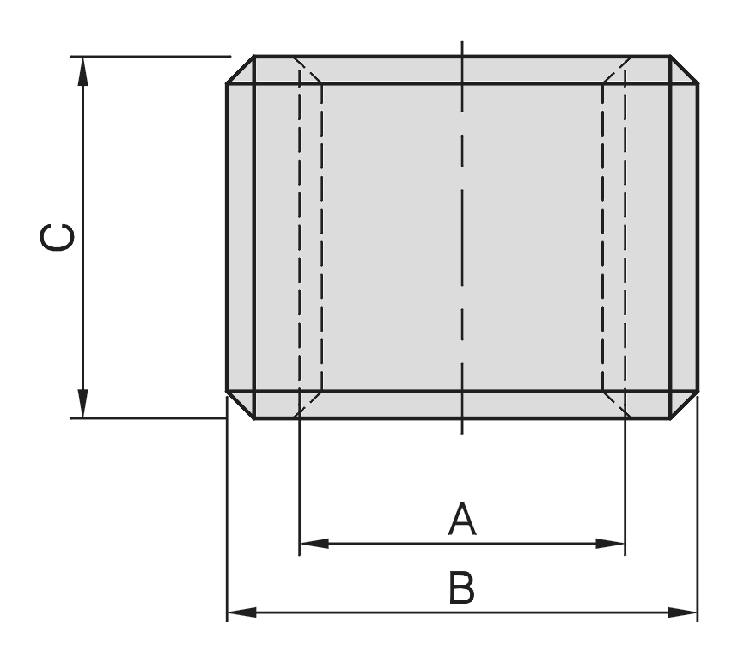

Dimension drawing
| Model No. | A (internal) | B (external) | C | kg | Quote |
|---|---|---|---|---|---|
| PT43-0612-10 | M6x1.00 | M12x1.5 | 10 | 0.005 | Quote |
| PT43-0814-12 | M8x1.25 | M14x1.5 | 12 | 0.008 | Quote |
| PT43-1016-15 | M10x1.50 | M16x1.5 | 15 | 0.010 | Quote |
| PT43-1218-16 | M12x1.75 | M18x2.0 | 16 | 0.015 | Quote |
| PT43-1420-18 | M14x2.00 | M20x2.0 | 18 | 0.300 | Quote |
| PT43-1622-14 | M16x2.00 | M22x2.0 | 14 | 0.020 | Quote |
| PT43-1622-20 | M16x2.00 | M22x2.0 | 20 | 0.025 | Quote |
| PT43-2028-25 | M20x2.50 | M28x2.0 | 25 | 0.050 | Quote |
Material & specifications
- Material: S45C (JIS)
- Heat treated: HRC 32°–35°
- Surface finish: black oxide
- Repairs or reinforces tapped holes in fixture plates
Ordering the Threaded Insert
Send us the PT43 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
