PT57 · Ball Rollers & Accessories
Installation Tool

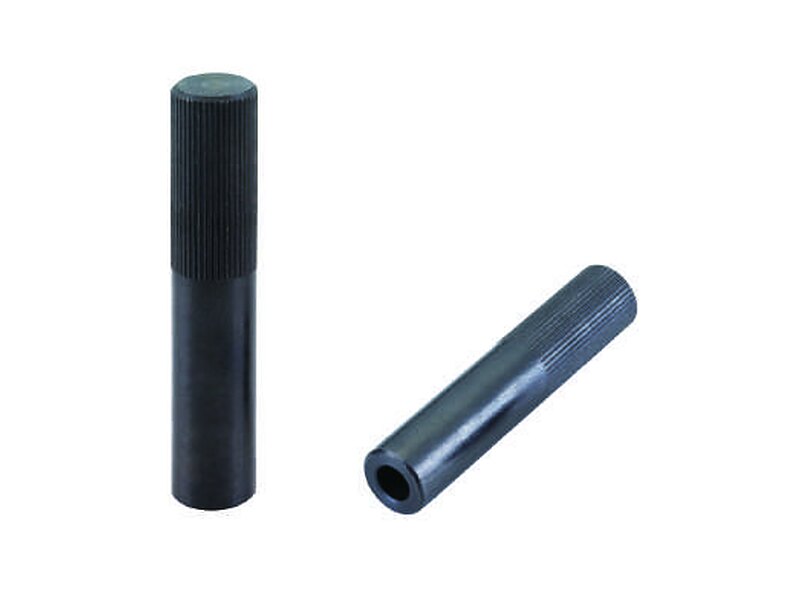

Drive tool for pressing PT55 and PT56 spring locating pins squarely into their bores.
- 4 part numbers with full dimensions
- Material: S45C
- Surface finish: black oxide
Installation Tool part numbers & dimensions
4 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

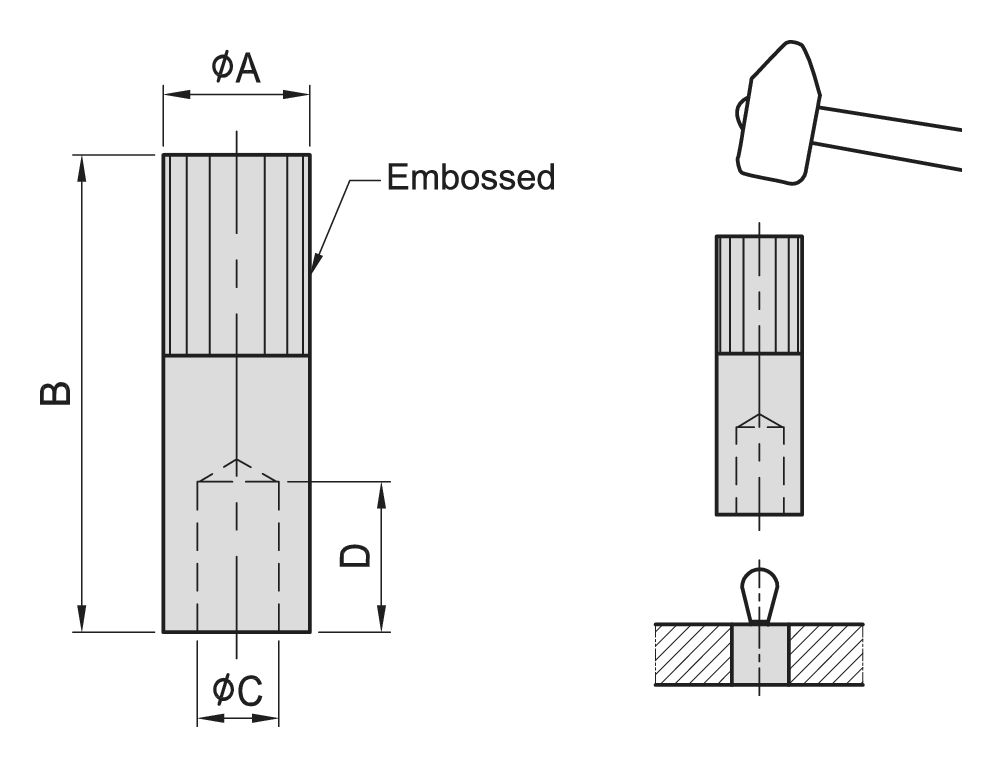

Dimension drawing
| Model No. | ØA | B | ØC | D | g | Quote |
|---|---|---|---|---|---|---|
| PT57-0603 | 8 | 50 | 3.2 | 6 | 19 | Quote |
| PT57-1006 | 12 | 60 | 6.2 | 13 | 50 | Quote |
| PT57-1208 | 14 | 60 | 8.2 | 16 | 65 | Quote |
| PT57-1610 | 18 | 60 | 10.2 | 19 | 106 | Quote |
Material & specifications
- Material: S45C
- Surface finish: black oxide
- Embossed grip; used to press PT55 / PT56 spring locating pins into place
Ordering the Installation Tool
Send us the PT57 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
