PT49 · Ball Rollers & Accessories
Ball Roller (Press-Fit)
Stainless press-fit ball transfer unit for flush mounting in fixture plates.
- 2 part numbers with full dimensions
- Material: SUS304 (JIS) stainless steel
Ball Roller (Press-Fit) part numbers & dimensions
2 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

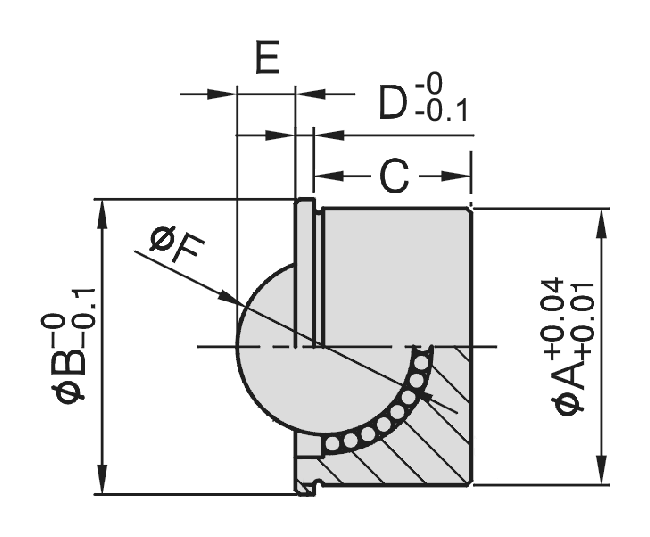

Dimension drawing
| Model No. | ØA | ØB | C | D | E | ØF | Load N (kgf) | Quote |
|---|---|---|---|---|---|---|---|---|
| PT49-2614 | 24 | 26 | 14 | 1.5 | 5.3 | 15.87 | 343 (35) | Quote |
| PT49-3217 | 30 | 32 | 17 | 2 | 6.3 | 19.05 | 412 (42) | Quote |
Material & specifications
- Material: SUS304 (JIS) stainless steel
- Press-fit body ØA +0.04/+0.01
- Load capacity N (kgf) per size in the table
Ordering the Ball Roller (Press-Fit)
Send us the PT49 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
