PT47 · Ball Rollers & Accessories
Ball Roller (Hex Body)
Stainless threaded ball transfer unit with a hex body for sliding heavy parts and plates into position.
- 2 part numbers with full dimensions
- Material: SUS304 (JIS) stainless steel
Ball Roller (Hex Body) part numbers & dimensions
2 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

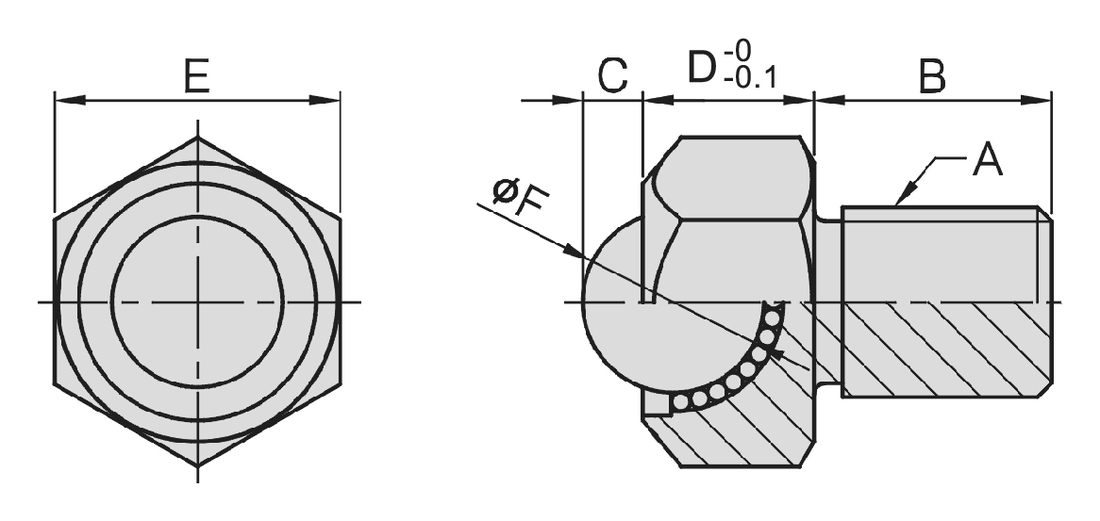

Dimension drawing
| Model No. | A | B | C | D | E | ØF | Load N (kgf) | Quote |
|---|---|---|---|---|---|---|---|---|
| PT47-1615 | M16 | 20 | 3.3 | 16 | 24 | 15.87 | 343 (35) | Quote |
| PT47-2018 | M20 | 25 | 5.3 | 19 | 30 | 19.05 | 412 (42) | Quote |
Material & specifications
- Material: SUS304 (JIS) stainless steel
- Load capacity N (kgf) per size in the table
Ordering the Ball Roller (Hex Body)
Send us the PT47 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
