PT10 · Locating & Positioning
Locating Key
Hardened round locating key for aligning fixtures to machine table slots.
- 5 part numbers with full dimensions
- Material: SCM440 (JIS) / 34CrMo4 (DIN)
- Heat treated: HRC 45°
Locating Key part numbers & dimensions
5 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

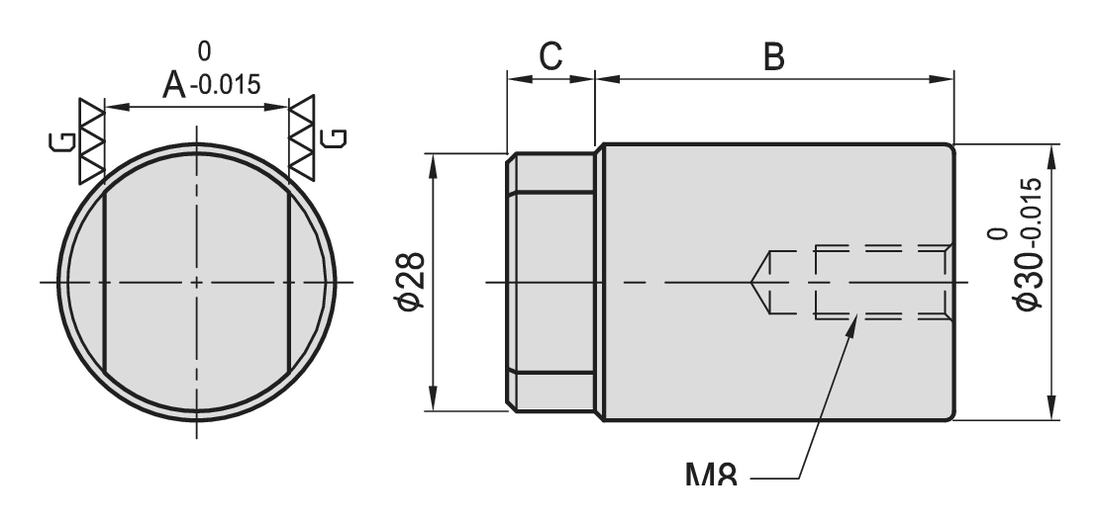

Dimension drawing
| Model No. | A | B | C | kg | Quote |
|---|---|---|---|---|---|
| PT10-1410 | 14 | 49 | 10.0 | 0.032 | Quote |
| PT10-1815 | 18 | 49 | 15.0 | 0.033 | Quote |
| PT10-2009 | 20 | 39 | 9.5 | 0.028 | Quote |
| PT10-2010 | 20 | 49 | 10.0 | 0.033 | Quote |
| PT10-2015 | 20 | 49 | 15.0 | 0.034 | Quote |
Material & specifications
- Material: SCM440 (JIS) / 34CrMo4 (DIN)
- Heat treated: HRC 45°
- Application: multipurpose locating key (Ø30 body, Ø28 key head, M8 tapped)
Ordering the Locating Key
Send us the PT10 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
