PT58 · Locating & Positioning
Eccentric Liner
Eccentric bushing that lets you dial in the position of a spring locating pin.
- 4 part numbers with full dimensions
- Material: S45C
- Surface finish: black oxide
Eccentric Liner part numbers & dimensions
4 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

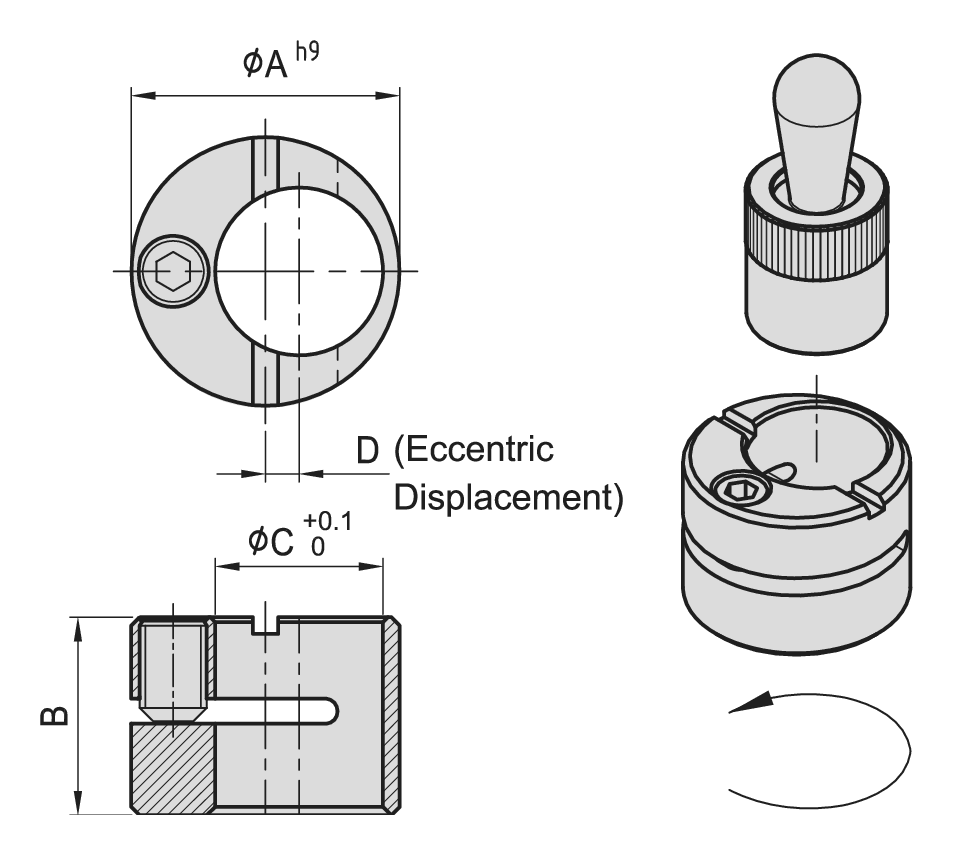

Dimension drawing
| Model No. | ØA (h9) | B | ØC | D (eccentric) | g | Quote |
|---|---|---|---|---|---|---|
| PT58-0612 | 12 | 9.9 | 6 | 2 | 5.5 | Quote |
| PT58-1016 | 16 | 11.9 | 10 | 2 | 9.4 | Quote |
| PT58-1218 | 18 | 13.9 | 12 | 2 | 12.8 | Quote |
| PT58-1625 | 25 | 17.9 | 16 | 3 | 34.0 | Quote |
Material & specifications
- Material: S45C
- Surface finish: black oxide
- Rotate the liner to fine-tune the position of a spring locating pin (eccentric displacement D)
Ordering the Eccentric Liner
Send us the PT58 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
