PT32 · Locating & Positioning
Shoulder Dowel Pin
Hardened stepped dowel pin with a ground shoulder and M5 extraction thread for multifunction positioning.
- 5 part numbers with full dimensions
- Material: SCM435 (JIS) / 34CrMo4 (DIN)
- Heat treated: HRC 55°
Shoulder Dowel Pin part numbers & dimensions
5 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

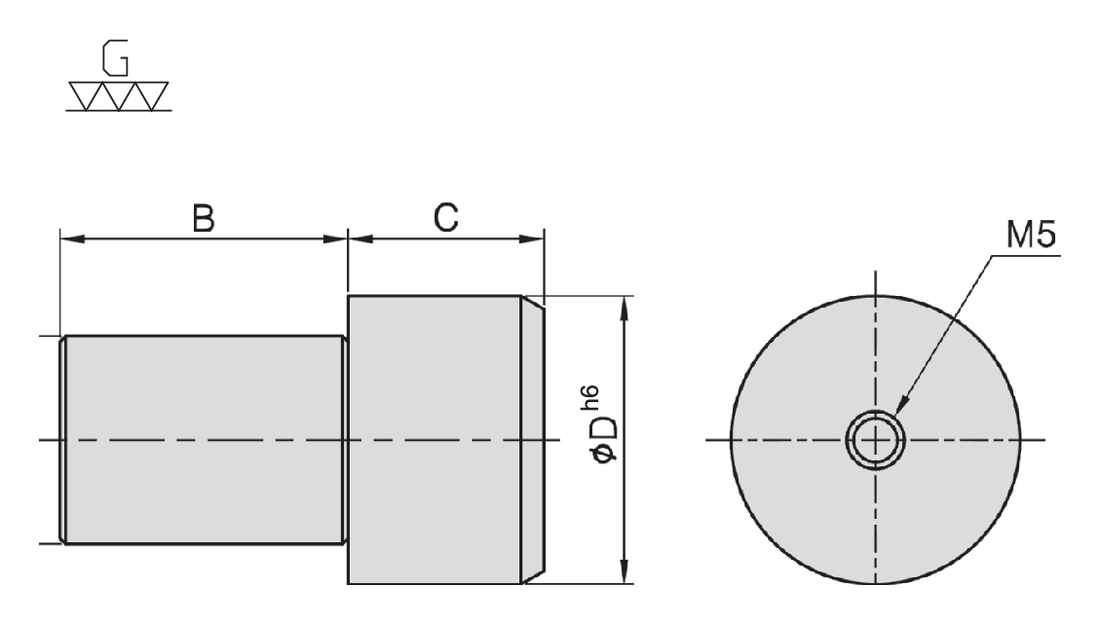

Dimension drawing
| Model No. | ØA (h6) | B | C | ØD (h6) | kg | Quote |
|---|---|---|---|---|---|---|
| PT32-081225 | 8 | 13 | 12 | 12 | 0.012 | Quote |
| PT32-121632 | 12 | 18 | 14 | 16 | 0.032 | Quote |
| PT32-142037 | 14 | 22 | 15 | 20 | 0.052 | Quote |
| PT32-162239 | 16 | 22 | 17 | 22 | 0.072 | Quote |
| PT32-182542 | 18 | 25 | 17 | 25 | 0.098 | Quote |
Material & specifications
- Material: SCM435 (JIS) / 34CrMo4 (DIN)
- Heat treated: HRC 55°
- Application: multifunction positioning
- M5 extraction thread in the head
Ordering the Shoulder Dowel Pin
Send us the PT32 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
