PT11 · Locating & Positioning
Threaded Dowel Pin
Hardened h6 dowel pin with an internal thread for easy extraction.
- 6 part numbers with full dimensions
- Material: SCM440 (JIS) / 34CrMo4 (DIN)
- Heat treated: HRC 45°
Threaded Dowel Pin part numbers & dimensions
6 part numbers. All dimensions in millimetres (mm) unless noted; letters match the dimension drawing. On a phone, swipe the table sideways. Tap “Quote” to email us about a part.

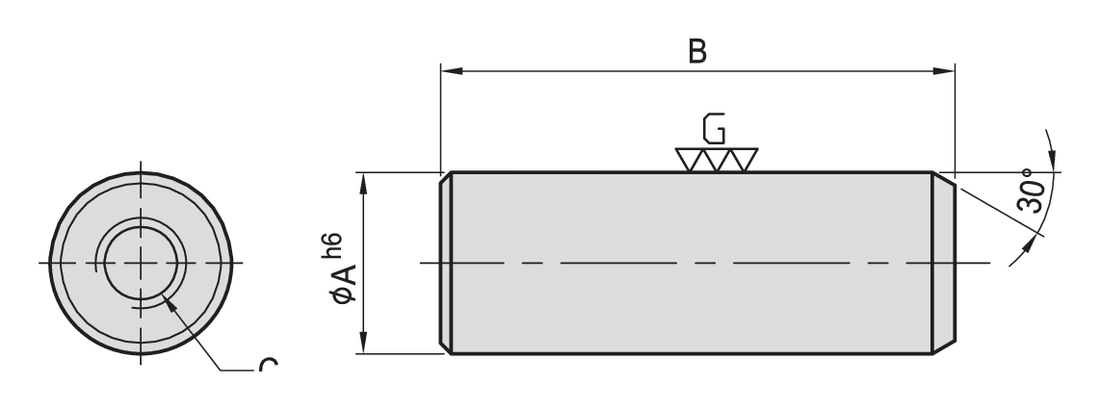

Dimension drawing
| Model No. | A (h6) | B | C | kg | Quote |
|---|---|---|---|---|---|
| PT11-0825 | 8 | 25 | M4 | 0.010 | Quote |
| PT11-1030 | 10 | 30 | M5 | 0.015 | Quote |
| PT11-1234 | 12 | 34 | M6 | 0.030 | Quote |
| PT11-1642 | 16 | 42 | M6 | 0.060 | Quote |
| PT11-2047 | 20 | 47 | M8 | 0.100 | Quote |
| PT11-2549 | 25 | 49 | M8 | 0.160 | Quote |
Material & specifications
- Material: SCM440 (JIS) / 34CrMo4 (DIN)
- Heat treated: HRC 45°
- Application: threaded end makes removal easy
Ordering the Threaded Dowel Pin
Send us the PT11 part numbers and quantities you need and we will reply with pricing and lead time. Not sure which size fits your fixture? Email info@clampsupply.com or call (619) 704-3113 and we will help you choose. Please confirm critical dimensions before machining your fixture.
